MrCool DIY 5th Gen 24K BTU 230V 22.7 Seer2 Ductless Mini Split Heat Pump System [DIY-24-HP-WM-230D25-O] (SAK18564)

SAVE $600 USD
MrCoolSKU:DIY-24-HP-WM-230D25-O

$3,399.97 USD $3,999.97 USD

AUTHORIZED MRCOOL DEALER | MEMBER'S PRICE: $3,229.97 USD (SAVE $170 USD) (BECOME A MEMBER: CLICK HERE) | WE OFFER FAST'N FREE SHIPPING FOR THIS PRODUCT WITHIN CONTINENTAL USA.

THE ESTIMATED DELIVERY DATE FOR THIS ITEM IS BETWEEN: - . FINAL PRICE: NO EXTRA FEES AT CHECKOUT!

  • No Sales Tax Outside California!
  • We'll Beat The Lowest Price
  • Free Lifetime Customer Support

SHOP MRCOOL DIY 5TH GEN 24K BTU 230V 22.7 SEER2 DUCTLESS MINI SPLIT HEAT PUMP SYSTEM [DIY-24-HP-WM-230D25-O] AT SAKSBY.COM & SAVE! WHY PAY MORE ELSEWHERE!


Upgrade your home with the MRCOOL DIY 5th Gen Mini-Split – the easy way to stay cool in summer and warm in winter. It’s perfect for spaces up to 1,050 sq. ft. and is simple to install yourself, saving you time and money. With its pre-charged line set and easy-to-use parts, you can set it up quickly without needing special tools or professionals.

Enjoy the comfort of smart features that make controlling your climate simple. Use your phone or voice commands with Alexa or Google Assistant to turn it on or off, adjust the temperature, and keep your home just right. The system is built to last, with a durable design that fights corrosion and keeps working even in tough weather. Plus, it comes with strong warranties to give you peace of mind for years to come.

Don’t miss out on this smart, easy-to-install cooling and heating system. Make your home more comfortable today, click to get your MRCOOL DIY Mini-Split now and enjoy perfect climate control at your fingertips!


  • High efficiency cuts your power bill and keeps you comfy year-round.
  • Control it with your phone, voice, or the remote. Works seamlessly with Alexa, Google Assistant, and the SmartHVAC app.
  • Get perfect comfort right where you're sitting every time.



FEATURES


  • Whether it's a large room or an open-concept space, this system delivers reliable comfort all year long.
  • Save time and money with QuickConnect® pre-charged lines and DIYPRO® cable – no vacuum or licensed installer required.
  • With a SEER2 rating of 22.7, this unit keeps your energy bills low without sacrificing performance.
  • Enjoy peaceful cooling with indoor noise levels as low as 20 dBA – quieter than a whisper.
  • Delivers powerful heating and cooling with 23,000 BTUs in any season, even in winter temperatures as low as 5°F.
  • Distributes air evenly throughout your space, eliminating hot or cold spots.
  • Verified to meet strict energy efficiency standards, so you know you’re saving both energy and money.
  • Equipped with a rotary DC inverter compressor that adjusts power based on your needs for maximum efficiency.
  • Removes excess moisture to prevent mold, mildew, and musty air, especially in humid climates.
  • Enjoy professional-grade heating and cooling, without paying for installation or service fees.
  • Backed by a Limited Lifetime Warranty with 7 years on the compressor and 5 years on parts.



MANUALS

Manual, Remote Manual, Brochures, Warranty,



FREE USA SHIPPING. Your MrCool DIY 5th Gen Seer Ductless Mini Split Air Conditioner And Heat Pump System will be packed and shipped within 1-3 business days and delivered to you between 5-10 business days.

Series: DIY 5th Gen Single-Zone Mini-Split
System Type: Ductless Mini-Split Heat Pump
Cooling Capacity (BTU): 23,000 BTU
Heating Capacity (BTU): 23,000 BTU
Coverage Area: Up to 1,050 sq. ft.
Voltage: 208/230V
Phase: 1
Cycle: 60 Hz
SEER2 (Cooling Efficiency): 22.7
EER2 (Energy Efficiency Ratio): 12.7
HSPF2 (Heating Efficiency 4°F): 9.5
HSPF2 (Heating Efficiency 5°F): 7.1
Max Fuse Breaker (A): 25
Min Circuit Ampacity (A): 24
Line Set Length: 25 ft (Included)
Max Line Set Length: 164 ft
Refrigerant Type: R-454B
Refrigerant Volume (oz.): 67.37
Compressor Type: Rotary DC Inverter
Decibel Rating (Indoor): 20 dBA (Low) / 54 dBA (High)
Decibel Rating (Outdoor): 58.5 dBA
Number of Speeds: 5
Air Flow Direction: 4-way
Oscillation: Yes
Filter Type: Reusable
Mount Type: Wall-Mounted
Color: White
Smart Control: Yes (Compatible with SmartHVAC app, Amazon Alexa, and Google Assistant)
Remote Control Included: Yes
Auto Restart: Yes
Quiet Mode: Yes
Dry Mode (Dehumidifier Mode): Yes
Fan-Only Option: Yes
Anti-Mildew Function: Yes
Timer Function: Yes
Follow Me® Feature: Yes (Adjusts airflow based on remote’s location)
Gold Fin® Condenser: Yes (Corrosion-resistant for coastal environments)
DIY Installation: Yes (Includes QuickConnect® pre-charged refrigerant line set)
DIYPRO® Cable: Yes (Eliminates electrical conduit for easier installation)
Registered Warranty: Extended Limited Lifetime Warranty
Parts Warranty: 5 years
Compressor Warranty: 7 years
Net Dimensions (Air Handler D*W*H):
(8.9*42.52*13.19)"
Net Dimensions (Condenser D*W*H): (16.14*37.24*31.89)"
Net Weight (Air Handler): 35.93 lbs
Net Weight (Condenser): 122.8 lbs
Gross Dimensions (Air Handler D*W*H): (17.68*43.73*14.29)"
Gross Dimensions (Condenser D*W*H): (19.88*42.91*37.01)"
Gross Weight (Air Handler): 49.82 lbs
Gross Weight (Condenser): 155.64 lbs
Certifications: AHRI Certified, ETL Listed, UL Listed
Energy Efficiency Compliance: ENERGY STAR Certified
Proposition 65 Warning: Yes

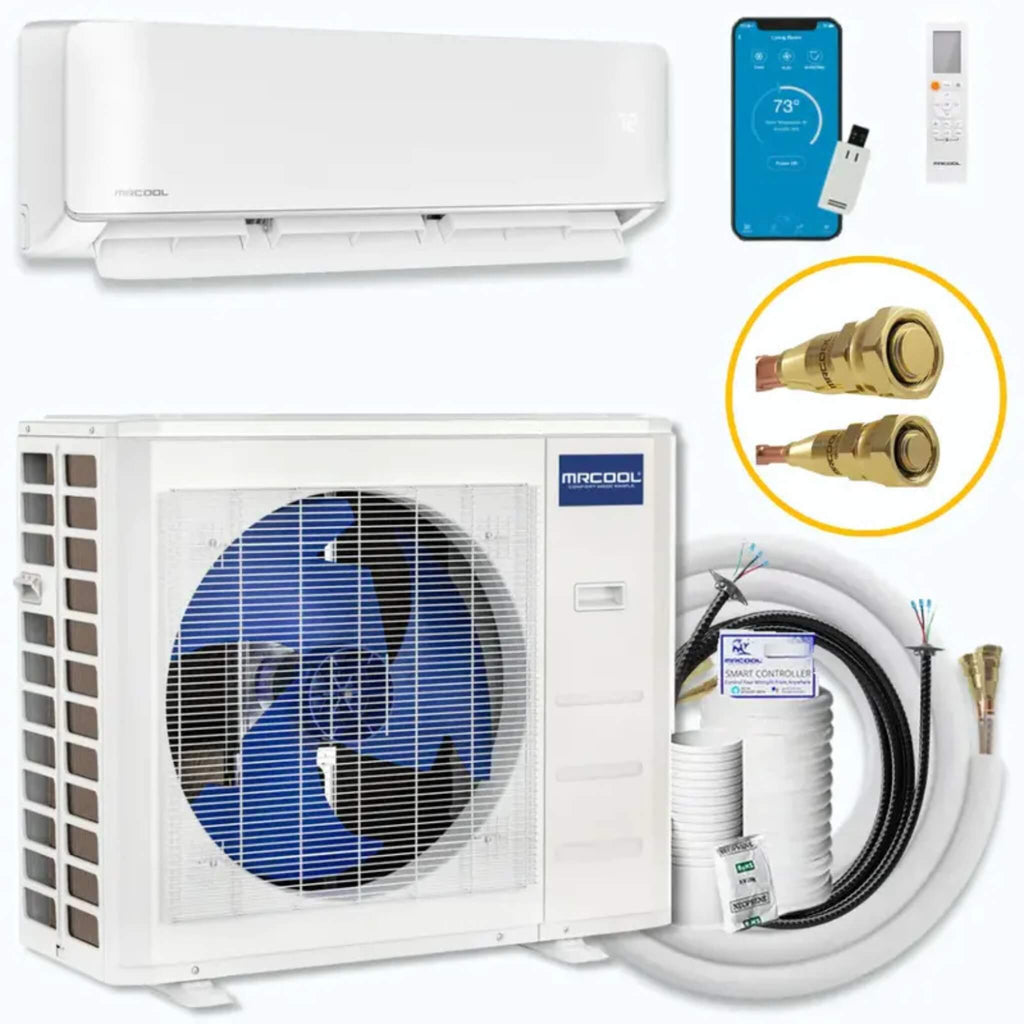

(1) Indoor Air Handler, (1) Outdoor Condenser, (1) Wi-Fi SmartHVAC Control Module, (1) Remote Control, (1) Installation Kit (Includes DIYPRO® Cable & QuickConnect® Pre-charged Line Set (25 ft)), (1) User Manual, (1) Warranty Documentation


Size Guide:
9,000 BTU ( 0.75 Ton ) → 150 - 350 sq. ft.
12,000 BTU ( 1 Ton ) → 350 - 550 sq. ft.
18,000 BTU ( 1.5 Ton ) → 500 - 750 sq. ft.
24,000 BTU ( 2 Ton ) → 750 - 1,050 sq. ft.
36,000 BTU ( 3 Ton ) → 1,000 - 1,500 sq. ft.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)


HAVE QUESTIONS? WE'RE A CALL AWAY!

Talk With A Trusted Expert Today!

Call Us

MRCOOL WARRANTY

MRCOOL offers a limited warranty on its HVAC products, typically covering parts for 5 to 7 years and compressors for up to 10 years, depending on the specific model and product line. To qualify for the full extended warranty, customers must register their product on MRCOOL’s official website within 60 days of installation. For the DIY series, which is designed for self-installation, the warranty remains valid as long as the unit is properly installed according to the instructions—no licensed HVAC technician is required. However, damage caused by improper installation, misuse, or unauthorized repairs may void the warranty. Always consult the official warranty documentation or website for product-specific details.
