RENOGY 1200W Solar Panel Tiny House Home Cabin Kit (SAK71384)

SAVE $1,000

$3,699.97 $4,699.97

Bulk Savings: Buy 1

Enjoy FAST & FREE SHIPPING for this product within the United States. The estimated delivery date for this item is between: - . FINAL PRICE: NO EXTRA FEES AT CHECKOUT!

Experience the satisfaction of generating your own power with our 48V 3500W Solar Inverter Charger. This innovative system seamlessly converts DC power to AC, allowing you to effortlessly run everything from lights and refrigerators to entertainment systems and more. Embrace a sustainable lifestyle and enjoy the peace of mind that comes with off-grid independence.

Introducing unprecedented control. The newly added BT-2 Bluetooth Module connects seamlessly with the Renogy DC HOME smartphone App. Monitor your system performance in real-time, right from your fingertips! Track energy production, analyze system health, and optimize your power usage – all with effortless convenience.

Don't settle for limitations. Embrace the freedom of off-grid living with this comprehensive tiny house home cabin kit. Invest in a sustainable future and power your dreams today!

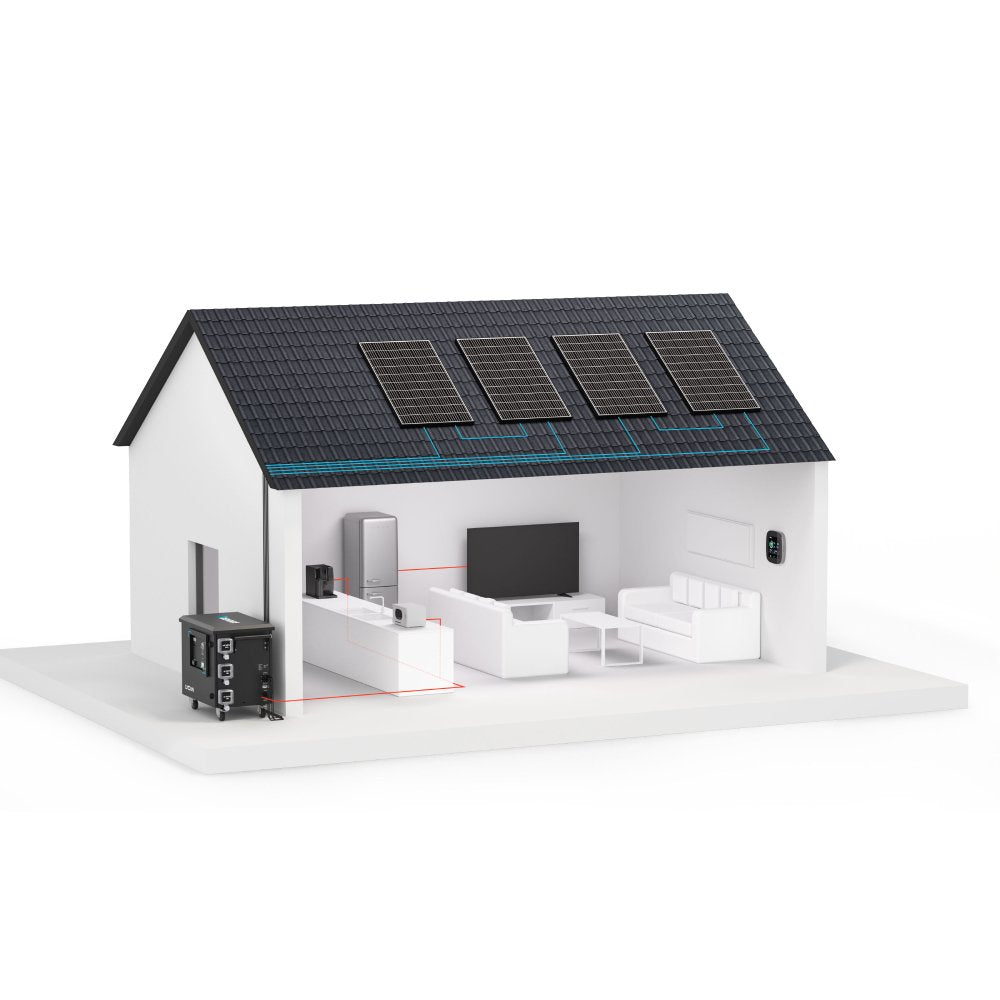

  • Power all your typical home appliances with ease using the tiny house home cabin kit. Enjoy the freedom and satisfaction of a sustainable, off-grid lifestyle.
  • This all-in-one kit provides everything you need to generate and manage power for your off-grid home. Experience convenience and reliability with a system designed for modern needs.
  • Embrace a greener lifestyle with a kit that supports renewable energy. Enjoy the peace of mind that comes with reliable power generation, reducing your dependence on traditional power sources.
  • The kit is designed for easy installation and use, making it accessible for anyone looking to transition to off-grid living. Get up and running quickly with straightforward instructions and support.




Domestic USA Shipping: Your RENOGY 1200W Solar Panel Tiny House Home Cabin Kit will be packed and shipped within 1-3 business days and delivered to you between 5-10 business days.

Maximum Power at STC: 320W
Optimum Operating Voltage (Vmp): 32.7V
Open-Circuit Voltage (Voc): 40.1V
Optimum Operating Current (Imp): 9.79A
Short-Circuit Current (Isc): 10.36A
Operating Temperature: -40°F to 185°F
Cell Efficiency: 21%
Maximum System Voltage: 1000V DC (UL)
Maximum Series Fuse Rating: 15A
Weight: 39.7lbs
Dimensions: (62.6*39.4*1.4)"
Certifications: CE, ISO, UL
Continuous Output Power: 3500W
Peak Power Rating: 7000W
Output Voltage: 120VAC±5%
Output Frequency: 50 Hz ± 0.3% 60 Hz± 0.3%
Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
Charge Controller Type: MPPT
Maximum Input Power: 4800W
Maximum Input Current: 50A
Dimensions: (16.8*12.7*4.9)"
Weight: 23.8 lbs /10.8kg
Battery Type: AGM
Rated Capacity: 200Ah (20 Hour Rate to 10.5V)
Nominal Voltage: 12V
Internal Resistance: Approx. 3.5mΩ
Connection Method: In Series, and In Parallel (up to 4)
Dimensions: (20.6*9.4*8.8)"
Weight: 127.9 lbs / 58 kg
Standard Operation Temperature: 77°F±9°F(25°C±5°C)
Nominal Voltage: 12.8V
Energy: 2560Wh
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charge Voltage: 14.4V
Maximum Continuous Charge Current: 100A
Dimensions : (20.55*9.45*8.62)"
Weight: 47.3 lbs. / 21.45 kg
Terminal Bolt Size: M8 x 1.25 x 15 mm
Protection Rating: IP65
Panels 25-Year Power Output Warranty: 5 Year 95% Output Warranty
10 Year 90% Output Warranty
25 Year 80% Output Warranty 10-Year Material and Workmanship Warranty
Accessories: 1-Year Material and Workmanship Warranty

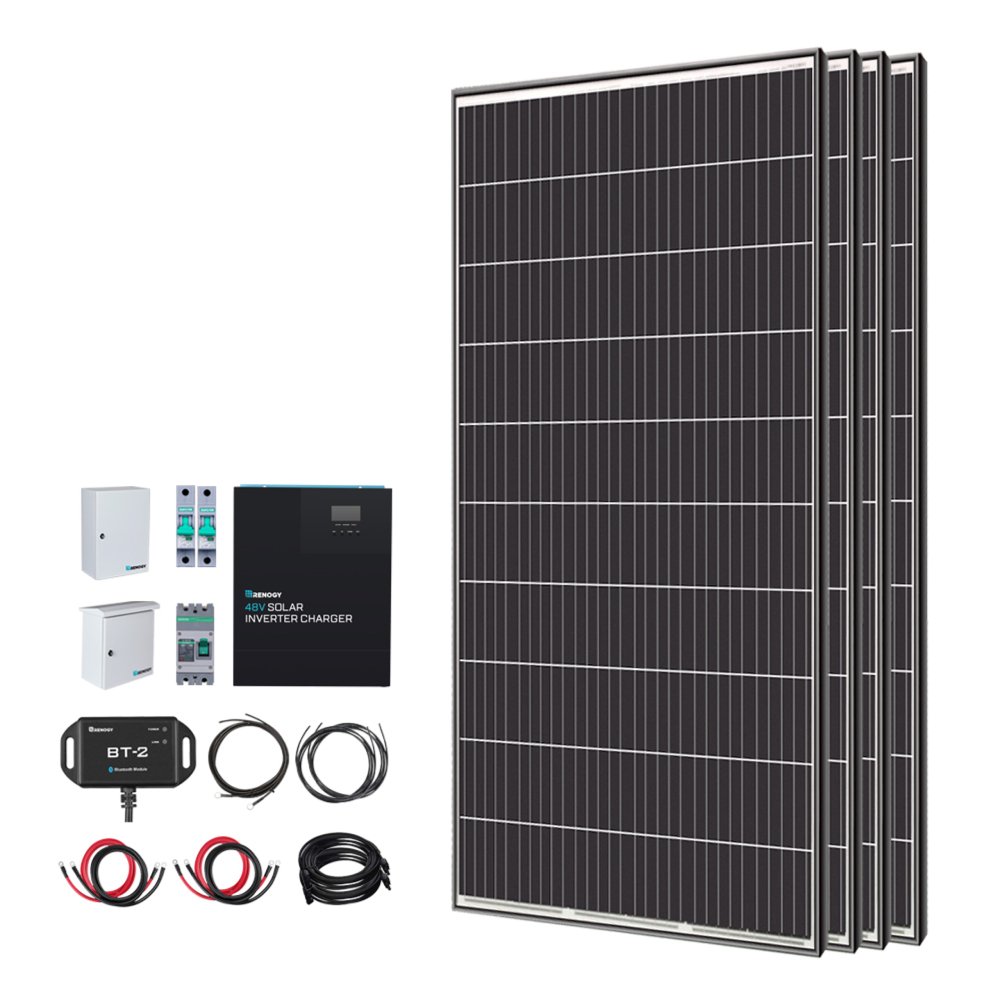

(1) 4 Pieces of 320 Watt Monocrystalline Solar Panel
(2) 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
(1) 5 Strings Solar Combiner Box
(2) 16A 1P DC Miniature Circuit Breaker
(1) DC Circuit Breaker Box
(1) 32A 1P DC Miniature Circuit Breaker
(1) 16Ft 8AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)
(2) 8Ft 8AWG Solar Stranded Copper PV Wire
(1) 160A 2P DC Molded Case Circuit Breaker
(1) 48V 3500W Solar Inverter Charger
(2) 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
(1) BT-2 Bluetooth Module
